Technical Specifications
Starting from firmware version 3.1 and hardware version 5.9

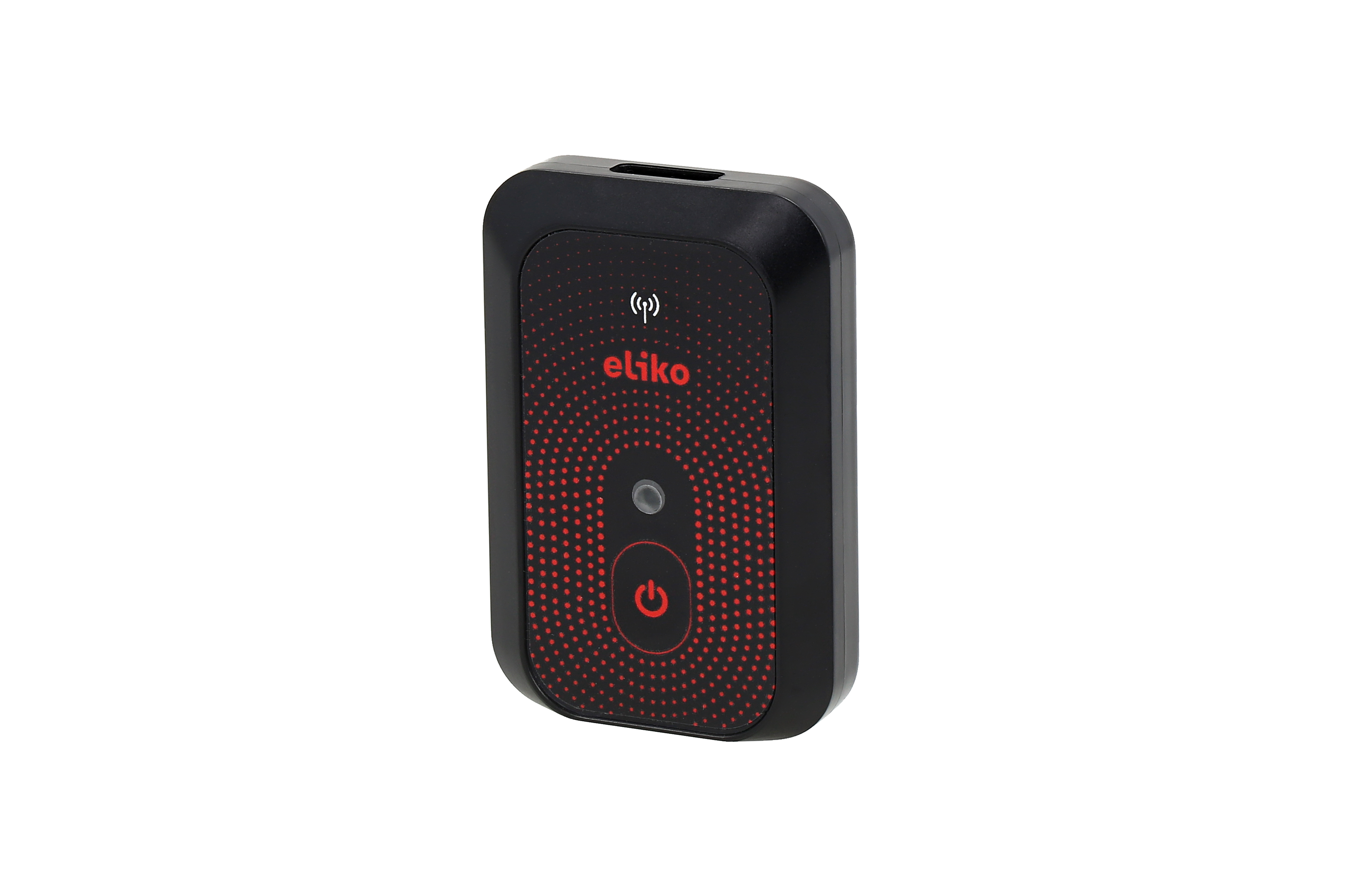

The slim battery-powered tag can be attached to any object that needstracking. It is a compact device that can last more than 5 months on one charge depending on the use case. It can be worn using a lanyard, wristband or in a sleeve, custom attachment solutions are available upon request.
|
Characteristics |
Values |
|---|---|
|

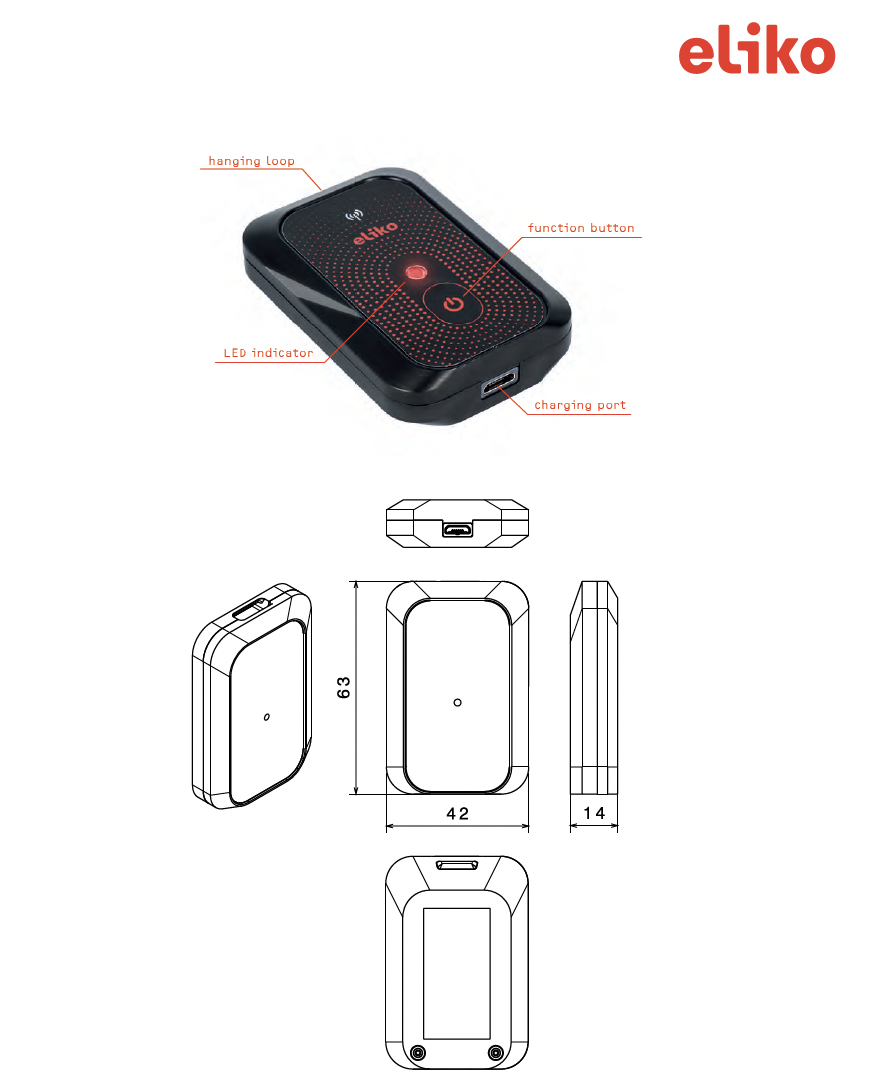

Dimensions |
63x42x13 mm (LxWxH) |
|
Weight |
30 g |
|
Add-ons |
Lanyard, Wirstband |
|
Operational range |
Up to 50 m (UWB Channel 5) |
|
Interface |
USB 2.0 full speed (12 Mbit/s) for data transmission through the Micro-B USB connector |
|
Battery |
450 mAh 3.7 V LiPo |
|
Charging |
Fully compliant USB charger through Micro-B USB connector. It is possible to also use 5 V DC adapters with 0.5 A current capability. |
|

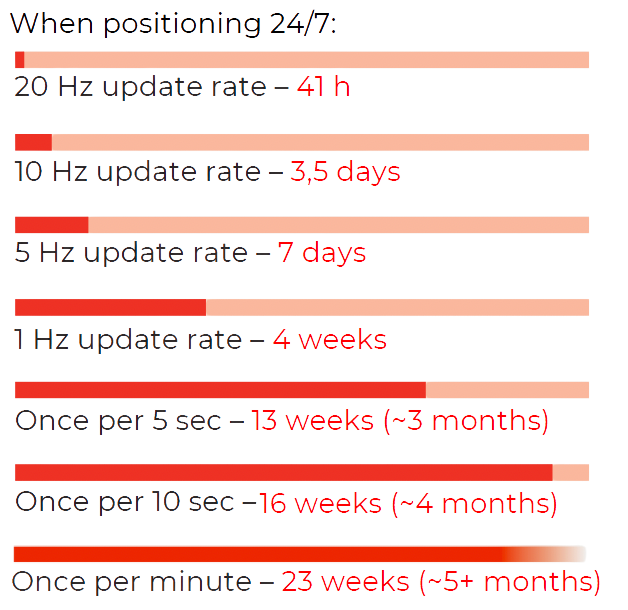

Battery life1 |
|
|

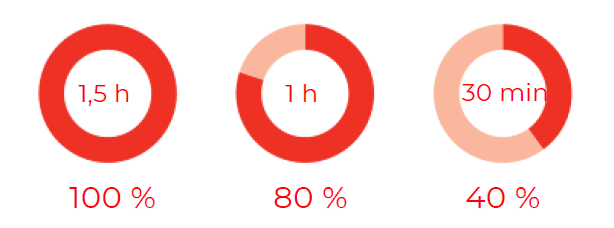

Charging time |
|
|
Operating temperature |
-10 … +50 °C |
|
Charging temperature |
0 … +45 °C |
|
IP Class |
IP54 and IP67 |
|
Sensors |
Accelerometer |
|
Feedback |
RGB LED |
1 Based on operating in ambient temperature +20 °C
This document is subject to change without notice.
